Jual GS2107-WTBD & GS2110-WTBD Mitsubishi HMI Touch Screen

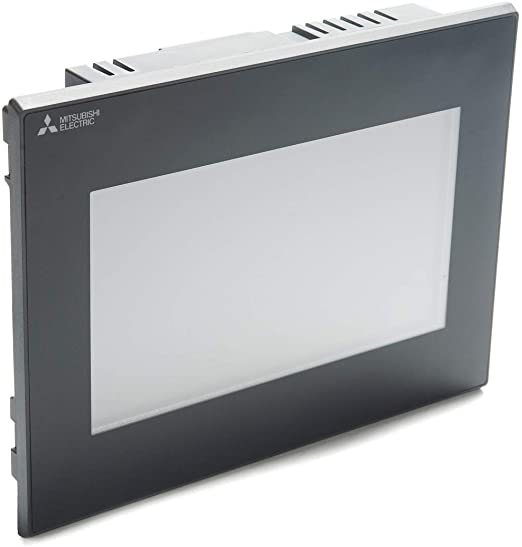

Jual GS2107-WTBD Mitsubishi HMI Touch Screen 7″

GS2110-WTBD Mitsubishi HMI Touch Screen 10″

General specifications

Item	Specifications
Operating ambient temperature *1	0 to 50 ℃
Storage ambient temperature	-20 to 60 ℃
Operating/Storage ambient humidity	10 to 90% RH, non-condensing *2 (The wet bulb temperature is 39℃).
Vibration resistance	Conforms to IEC 61131-2		Frequency	Acceleration	Half-amplitude	Sweep Count
		Under intermittent vibration	5 to 8.4 Hz	–	3.5 mm	10 times each in X, Y and Z directions
		Under intermittent vibration	8.4 to 150 Hz	9.8 m/s²	–	10 times each in X, Y and Z directions
		Under continuous vibration	5 to 8.4 Hz	–	1.75 mm	–
		Under continuous vibration	8.4 to 150 Hz	4.9 m/s²	–	–
Shock resistance	Conforms to IEC 61131-2 (147m/s², 3 times each in the X, Y, and Z directions)
Operating atmosphere	Must be free of lamp black, corrosive gas, flammable gas, or excessive amount of electro conductive dust particles. Must be no direct sunlight. (Same as for saving)
Operating altitude *3	2000m (6562ft) max.
Installation location	Inside control panel
Overvoltage category *4	Ⅱ or less
Pollution degree *5	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 0.14 to 1.5 mm² (solid wire), 0.14 to 1.0 mm² (stranded wire), or 0.25 to 0.5 mm² (rod terminal with an insulation sleeve). If impossible, connect the ground cable to the control panel.

Power supply specifications GS2107-WTBD & GS2110 WTBD Mitsubishi HMI Touch Screen

Item		Specifications
Item		GS2110-WTBD	GS2107-WTBD
Input power supply voltage		24 V DC (+10%, -15%), ripple voltage 200 mV or less
Power consumption		7.6 W (317 mA/24 V) or less	6.5 W (271 mA/24 V) or less
	At backlight off	3.8 W (158 mA/24 V) or less	3.8 W (158 mA/24 V) or less
Inrush current		17 A or less (6 ms, ambient temperature 25 ℃, at the maximum load)
Permissible instantaneous power failure time		Within 5 ms
Noise immunity		Conforms to IEC61000-4-4, 2 kV (power supply line)
Dielectric withstand voltage		350 V AC for 1 minute (across power supply terminals and earth)
Insulation resistance		500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester

Performance specifications GS2107-WTBD & GS2110 WTBD Mitsubishi HMI Touch Screen

Item		Specifications
Item		GS2110-WTBD	GS2107-WTBD
Display section *1	Type	TFT color liquid crystal display
	Screen size	10″	7″
	Resolution	800 × 480 dots
	Display size	W222 (8.74) × H132.5 (5.22) [mm] (inch) (Horizontal format)	W154 (6.06) × H85.9 (3.38) [mm] (inch) (Horizontal format)
	Display character	16-dot standard font: 50 characters 30 lines (Horizontal format)
	Display color	65536 colors
	Brightness	32-level adjustment
Backlight		LED-type (no replacement required) Backlight off/screen saving time can be set.
Touch panel *2	Type	Analog-resistive film type
	Key size	Minimum 2 × 2 [dots] (per key)
	Number of points touched simultaneously	Simultaneous 2-point presses prohibited (Only one point can be touched.)
	Life	1 million times (operating force 0.98 N max.)
Memory	C drive	Flash memory (Internal) (9 MB), for storing project data, OS
Memory	C drive	Life (Number of write times) 100000 times
Built-in interface	RS-422	1 ch Transmission speed: 115200/57600/38400/19200/9600/4800 bps Connector shape: D-sub 9 pins (Female) Terminating resistor: 330 Ω fixed
	RS-232	1 ch Transmission speed: 115200/57600/38400/19200/9600/4800 bps Connector shape: D-sub 9 pins (Male)
	Ethernet	1 ch Data Transfer method: 100BASE-TX, 10BASE-T, Connector shape: RJ-45 (modular jack)
	USB (device)	1 ch (rear face) USB version: USB 1.1 (Full-Speed 12 Mbps) Connector shape: USB Mini-B
	SD memory card	1 ch Conforms to the SD standard, Supported memory card: SDHC memory card, SD memory card
Buzzer output		Single tone (LONG/SHORT/OFF adjustable)
Protective structure *3		IP65F (only the front part of the panel)
External dimensions		W272 (10.71) × H214 (8.43) × D56 (2.21) [mm] (inch)	W206 (8.11) × H155 (6.11) × D50 (1.97) [mm] (inch)
Weight		Approx. 1.3 kg (Excluding mounting fixtures)	Approx. 0.9 kg (Excluding mounting fixtures)
Compatible software package		Version1.215Z or later *4
