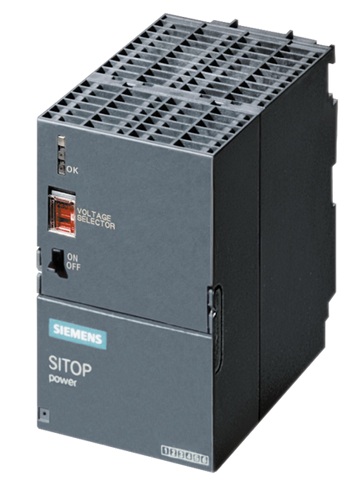

PS 307 6ES7307 Siemens Simatic Power Supply

Technical data

Input
Input 1-phase AC
● Note Automatic range selection
supply voltage
● 1 at AC rated value 120 V
● 2 at AC rated value 230 V
input voltage
● 1 at AC 85 … 132 V
● 2 at AC 170 … 264 V
Wide-range input No
Overvoltage resistance 2.3 × Vin rated, 1.3 ms
Mains buffering at Vin = 93/187 V
Mains buffering at Iout rated, min. 20 ms; at Vin = 93/187 V
Rated line frequency 1 50 Hz
Rated line frequency 2 60 Hz
Rated line range 47 … 63 Hz
input current
● at rated input voltage 120 V 4.2 A
● at rated input voltage 230 V 1.9 A
Switch-on current limiting (+25 °C), max. 55 A
duration of inrush current limiting at 25 °C
● maximum 3 ms
I²t, max. 3.3 A²·s
Built-in incoming fuse T 6.3 A/250 V (not accessible)
Protection in the mains power input (IEC 898) Recommended miniature circuit breaker: from 10 A characteristic C
Output
Output Controlled, isolated DC voltage
Rated voltage Vout DC 24 V
Total tolerance, static ± 3 %
Static mains compensation, approx. 0.1 %
Static load balancing, approx. 0.5 %
Residual ripple peak-peak, max. 50 mV
Residual ripple peak-peak, typ. 15 mV
Spikes peak-peak, max. (bandwidth: 20 MHz) 150 mV
Spikes peak-peak, typ. (bandwidth: 20 MHz) 60 mV
product function output voltage adjustable No
Output voltage setting –
Status display Green LED for 24 V OK
On/off behavior No overshoot of Vout (soft start)
Startup delay, max. 2 s
Voltage rise, typ. 10 ms
Rated current value Iout rated 10 A
Current range 0 … 10 A
supplied active power typical 240 W
short-term overload current
● on short-circuiting during the start-up typical 38 A
● at short-circuit during operation typical 38 A
duration of overloading capability for excess current
● on short-circuiting during the start-up 80 ms
● at short-circuit during operation 80 ms
Parallel switching for enhanced performance Yes
Efficiency
Efficiency at Vout rated, Iout rated, approx. 90 %
Power loss at Vout rated, Iout rated, approx. 27 W
Closed-loop control
Dynamic mains compensation (Vin rated ±15 %), max. 0.1 %
Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ. 2 %
setting time maximum 0.1 ms
Protection and monitoring
Output overvoltage protection Additional control loop, shutdown at < 28.8 V, automatic restart
Current limitation 11 … 12 A
property of the output short-circuit proof Yes
Short-circuit protection Electronic shutdown, automatic restart
enduring short circuit current RMS value
● maximum 12 A
Overload/short-circuit indicator –
Safety
Primary/secondary isolation Yes
galvanic isolation Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Protection class Class I
leakage current
● maximum 3.5 mA
● typical 0.6 mA
Degree of protection (EN 60529) IP20
